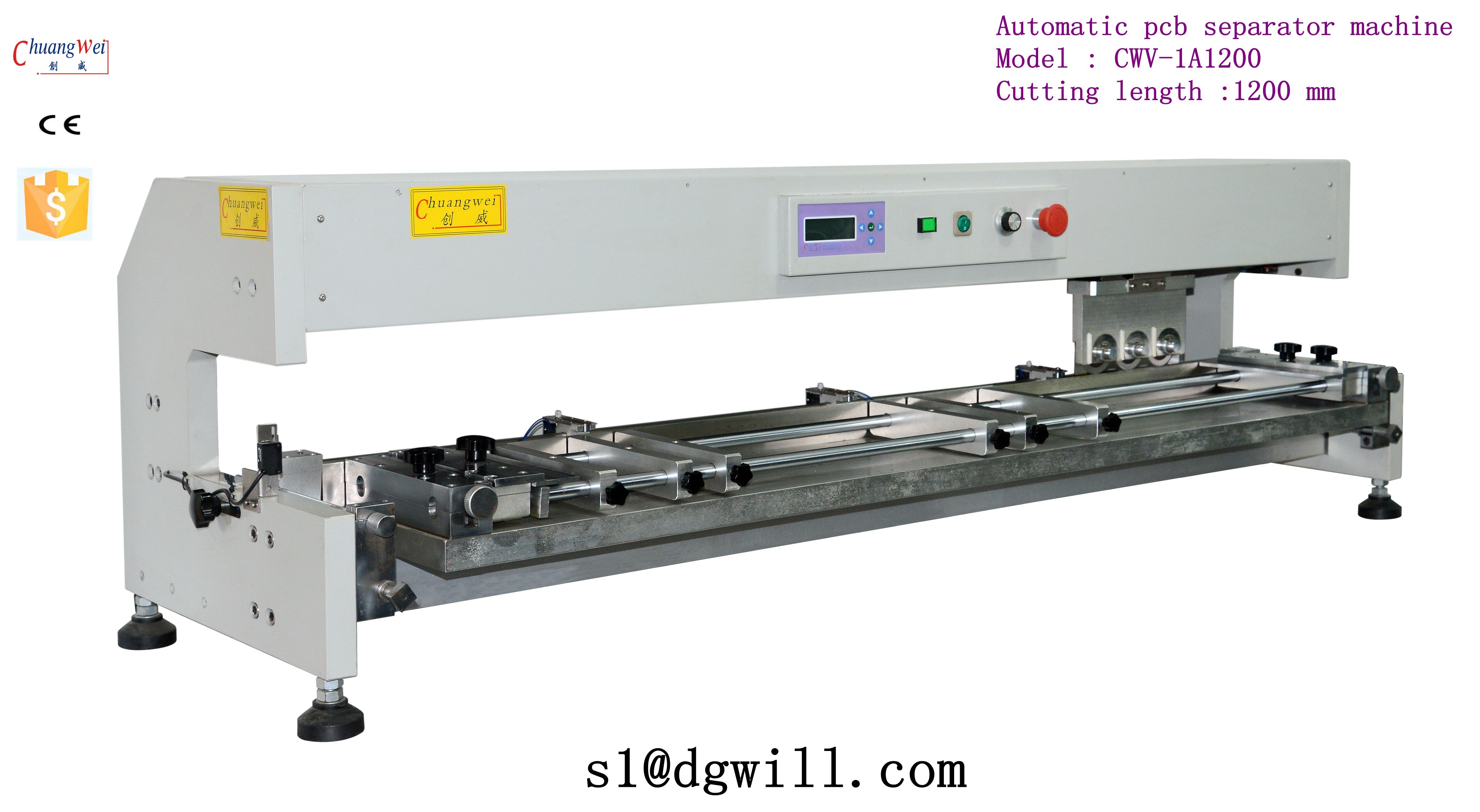

Automatic Pcb Separator Cutting 1200mm Length Board With Fast SpeedSpecification:
| PCB separator machine size | 1660mm X 530mm X 510mm |
| Max pcb cutting length | 1200mm |
| pcb cutting speed | 100/200/300/500 mm /s |
| pcb cutting thickness | 0.6-3.5mm |
| machine weight | 350 kg |
Automatic pcb separator features:
1. Separate pre-scored PCB assembly without stress on either PCB or component
2. Blade moving trip is adjustable by LCD display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5. Board with projected component can be cut precisely
6. 3 circular blades sharing cutting stress to protect PCBA
7. Distance between 2 guide pieces is adjustable according to different PCBA length
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
