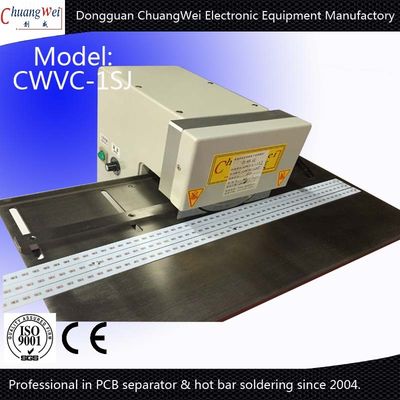

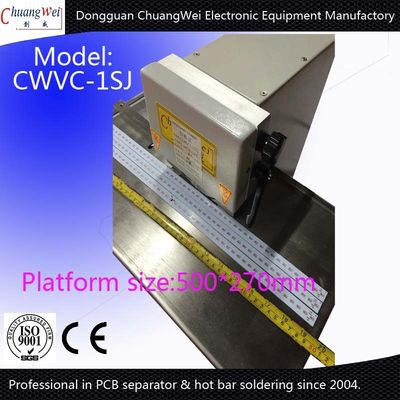

Pre-scored PCB Depaneling V Groove PCB Separator With Two Round Blades
Pcb Shearing Machine Sepcification:
| Model | CWVC-1SJ |
| Machine Size | 420 x 280 x 400 mm |
| Cutting speed | 0-400 mm / s |
| Minimize thickness : | 1.0-3.5 mm |
| Machine weight | 30 kg |
Suitable for cutting:
Cutting the aluminium base board of 1.0-3.5 mm thickness
safe pcba separator for led strips , aluminum base board , fr4 , fiber glass etc.
Feautures of pcb shearing machine:
Agree with all kinds of PCB with V-cut .
Adjustable Speed from 0 to 70 R.P.M .
Reduce chaps from SMT soldering spots .
This PCB moving separation is suitable for twin-board or large number .
Limit components below the PCB to 20mm , 2mm to V-cut .
Limit component upon the PCB to 20mm , 2mm to V-Cut .
Our service
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
About us
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now ChuangWei have became one of the biggest PCB separator production base in China.
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.
CE certification
