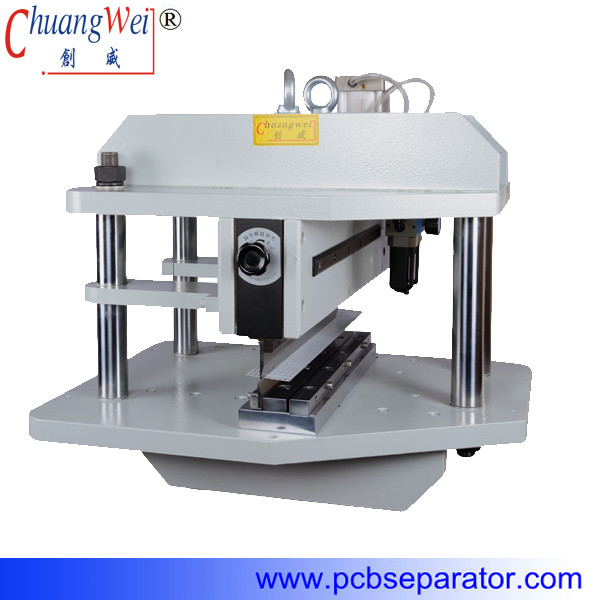

Rigid Guillotine PCB Depanelizer Machine With Two Linear Blades
The most professional PCB shearing machine manufacturers in China.
V-CUT PCB shearing machine:
1.Nice for shearing v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2.Shear rigid and thick board fluently.
3.Use pneumatic-driven and electromagnetic valve to operate.
V-CUT PCB shearing machine specifications:
| Model | CWVC-450 |

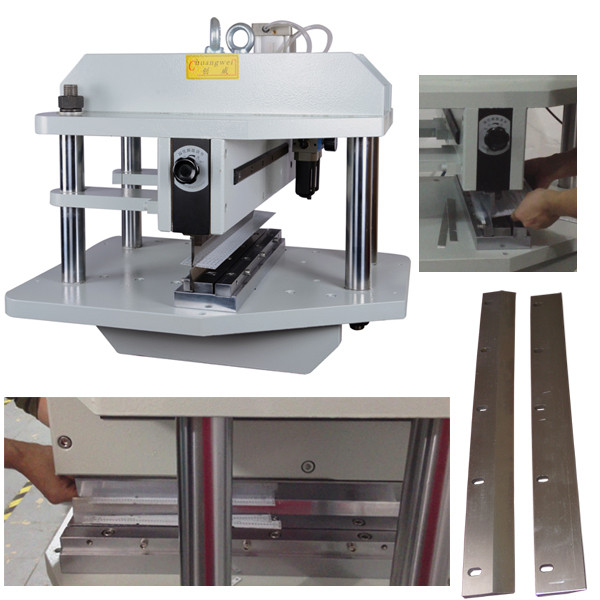

| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB shearing length | unlimted |
| PCB shearing thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB shearing speed | due to operator skilled level |
| PCB shearing machine size | 900*760*750 |
| PCB shearing machine weight | 475kg |
V-CUT PCB shearing machine features:
1.New style rigid machine structure design,shear any length rigid and thick metal board more safely and easily.

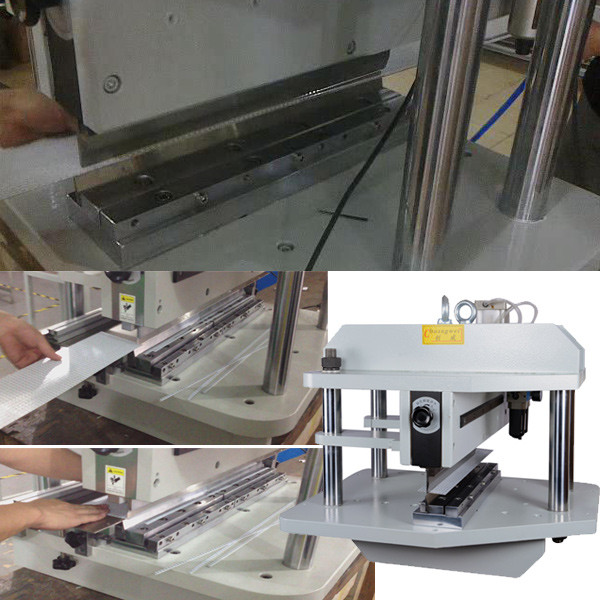

2.Shear long boards directly,without turning PCB direction.
3.Shear process without vibrations due to pneumatic drive unit.
4.Shearing PCB without bending and tension stress.
5.PCB control operation is that operator stamps the foot pedal to shear PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.
